Product Description

MPN: 3925C022

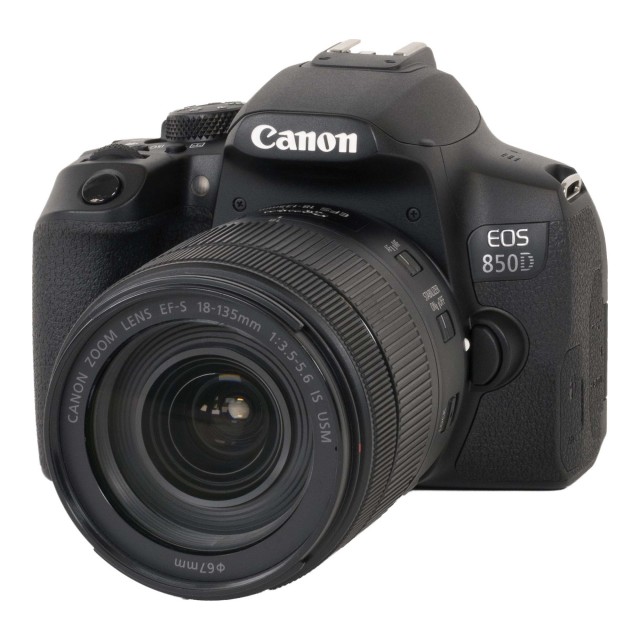

Canon EOS 850D DSLR Camera with 18-135mm f3.5-5.6 IS USM Lens Specification

• 24.1 Megapixels
• APS-C sensor
• Digic 8 Image Processor
• 4K Movies
• 30fps
• 5-axis Digital Movie IS
• 45 all cross-type AF points
• WIFI and Bluetooth
• Operating environment: 0 – 40 °C, 85% or less humidity
• Power: LP-E17
• Dimensions, body only: 13.1W x 10.26H x 7.62D cm
• Weight, body only: 515 g

Image Sensor

• Type: 22.3mm x 14.9 mm CMOS
• Effective Pixels: Approx. 24.10 megapixels
• Total Pixels: Approx. 25.80 megapixels
• Aspect Ratio: 3:2
• Low-Pass Filter: Built-in/Fixed
• Sensor Cleaning: EOS integrated cleaning system
• Colour Filter Type: Primary Colour

Image Processor

• Type: DIGIC 8

Lens

• Lens Mount: EF/EF-S
• Focal Length; Equivalent to 1.6x the focal length of the lens
• Image Stabilisation: Optical Image Stabilizer on compatible lens / Movie: In-camera 5-axis Digital IS available. Further stabilisation enhancements from lenses compatible with Dynamic IS 1

Focusing

• Via optical viewfinder: TTL secondary image-forming phase-difference detection system with AF-dedicated sensor
• Via liveview on LCD screen: Dual Pixel CMOS AF System. Phase detection pixels built onto imaging sensor 2

AF System / Points

• Via optical viewfinder: 45 cross-type AF points (45 f/5.6 cross-type AF points, 27 f/8 points (9 cross-type), centre point is f/2.8 and f/5.6 dual cross-type) 3
• Via liveview on LCD screen: Maximum 143 AF points via camera automatic selection 4
• Freely position 1 AF point/ 1 AF Zone (9 points, 3x3 grid) via manual selection 5

AF working range

• -4 - 18 EV

AF Point Selection

Via optical viewfinder:

• Automatic selection: 45 point AF (with iTR Face Priority)
• Manual selection: Single point AF
• Manual selection: Zone AF
• Manual selection: Large Zone AF

Selected AF point display

• Indicated by a transmissive LCD in viewfinder and Quick Control screen

Predictive AF

• Yes 6

AF Lock

• Locked when shutter button is pressed half way in One Shot AF mode or AF-ON Button is pressed.

AF Assist Beam

• Intermittent firing of built-in flash (effective range up to 4.0 m) or emitted by optional dedicated Speedlite

Manual Focus

• Selected on lens

Exposure Control

Metering modes Via optical viewfinder:

• 220,000-pixel RGB+IR metering sensor
• Metering with the area divided into 216 segments (18 × 12)
• Evaluative metering (linked to all AF points)
• Partial metering (approx. 6.5 % of viewfinder)
• Spot metering (approx. 2.0 % of viewfinder)
• Center-weighted average metering

 Via liveview on LCD screen:

• Evaluative metering (384 zones)
• Partial metering (approx. 5.8 % of LCD screen)
• Spot metering (approx. 2.9 % of LCD screen)
• Center-weighted average metering

Metering Range

• Via optical viewfinder:
• EV 1-20 (at 23 °C with 50mm f/1.4 lens ISO 100)
• Via liveview on LCD screen:
• EV -2-20 (at 23 °C, ISO 100, evaluative metering)

AE Lock

• Auto: In One-shot AF mode with evaluative metering exposure is locked when focus is achieved.
• Manual: By AE Lock Button in creative zone modes.

Exposure Compensation

• +/-5 EV in 1/3 or 1/2 stop increments (can be combined with AEB).

AEB

• 3 shots +/-3 EV 1/3 or 1/2 stop increments

ISO Sensitivity

• Auto (100-25600), 100-25600 (in 1/3-stop or whole stop increments)
• ISO can be expanded to H: 51200
• During Movie shooting: Auto (100-12800), 100-12800 (in 1/3-stop or whole stop increments) ISO can be expanded to H: 25600

Shutter

• Type: Electronically-controlled focal-plane shutter
• Speed: 30-1/4000 sec (1/2 or 1/3 stop increments), Bulb (Total shutter speed range. Available range varies by shooting mode)

White Balance

• Settings: AWB (Ambience priority, White priority), Daylight, Shade, Cloudy, Tungsten light, White Fluorescent light, Flash, Custom, Colour Temperature Setting.
• White balance compensation: 1. Blue/Amber bias +/-9 levels  2. Magenta/ Green bias +/-9 levels
• Custom White Balance: Yes, 1 setting can be registered
• WB Bracketing: +/-3 levels in single level increments  /  3 bracketed images per shutter release.  /  Selectable Blue/Amber bias or Magenta/ Green bias.

Viewfinder

• Type: Pentamirror
• Coverage (Vertical/Horizontal): Approx. 95 %
• Magnification: Approx. 0.82x 7
• Eyepoint: Approx. 19 mm (from eyepiece lens centre)
• Dioptre Correction: -3 to +1 m-1 (dioptre)
• Focusing Screen: Fixed (Translucent LCD screen for information overlay)
• Mirror: Quick-return half mirror (Transmission: reflection ratio of 40:60, no mirror cut-off with EF 600mm f/4 IS USM or shorter)
• Viewfinder Information: AF information: AF points, focus confirmation, AF area selection mode
• Exposure information: Shutter speed, aperture value, ISO speed (always displayed), AE lock, exposure level/compensation, spot metering circle, exposure warning, AEB.
• Flash information: Flash ready, high-speed sync, FE lock, flash exposure compensation, red-eye reduction light, AI Bounce mode active
• Image information: Card information, maximum burst (1 digit display), Highlight tone priority (D+).
• Composition information: Grid, Aspect Ratio
• Other information: Warning icon, Flicker Detection

Depth of field preview

• Yes, with Depth of Field preview button.

Eyepiece shutter

• Not provided

LCD Monitor

• Type: Vari angle touchscreen 7.5 cm (3.0') 3:2 Clear View II TFT, approx. 1040 K sRGB dots
• Coverage: Approx. 100%
• Viewing Angle (horizontally/vertically): Approx 170°
• Brightness Adjustment: Adjustable to one of seven levels
• Display Options: (1) Quick Control Screen (2) Camera settings (3) Electronic Level

Flash

• Built-in Flash GN (ISO 100, meters): 12
• Built-in Flash Coverage: up to 17mm focal length (35mm equivalent: approx. 28mm)
• Built-in Flash recycle time: Approx. 5 seconds
• Modes: Auto, Manual flash, Integrated Speedlite Transmitter
• Red-Eye Reduction: Yes - with red-eye reduction lamp
• X-sync: 1/200 sec
• Flash Exposure Compensation: +/- 2 EV in 1/2 or 1/3 increments
• Flash Exposure Bracketing: Yes, with compatible External Flash
• Flash Exposure Lock: Yes
• Second Curtain Synchronisation: Yes
• HotShoe / PC terminal: Yes/ No
• External Flash Compatibility: E-TTL II with EX series Speedlites, wireless optical multi-flash support
• External Flash Control: via camera menu screen

Shooting

• Modes: Scene Intelligent Auto (Stills and Movie), No Flash, Creative Auto, SCN(Portrait, Smooth Skin, Landscape, Close-up, Sports, Group Photo, Night Portrait, Handheld Night Scene, HDR Backlight Control, Food, Kids, Candlelight), Creative filters, Program AE, Shutter priority AE, Aperture priority AE, Manual (Stills and Movie), Self Portrait
• Picture Styles: Auto, Standard, Portrait, Landscape, Fine Detail, Neutral, Faithful, Monochrome, User Defined (x3)
• Colour Space: sRGB and Adobe RGB
• Image Processing: Highlight Tone Priority / Auto Lighting Optimizer (4 settings) / Long exposure noise reduction / High ISO speed noise reduction (4 settings) / Multi Shot Noise Reduction / Auto Correction of Lens Peripheral illumination, / Chromatic aberration correction, Distortion correction, Diffraction correction / Creative filters (Grainy B/W, Soft focus, Fish-eye effect, Water painting effect, / Toy camera effect, Miniature effect, HDR art standard, HDR art vivid, HDR art bold, HDR art embossed) / Multi-exposure / Resize, Crop (JPEG only)
• Drive modes: Single, Continuous L, Continuous H, Self timer (continuous, continuous panning, 2s+remote, 10s +remote)
• Continuous Shooting: Max. approx. 7fps via viewfinder.  Max. approx 7.5fps via Live View

Live View Mode

• Coverage: Approx. 100% (horizontally and vertically)
• Frame Rate: 29.97 fps
• Focusing: Manual Focus (Magnify the image 5x or 10x at any point on screen)
• Autofocus: Dual Pixel CMOS AF (Face detection and Tracking AF, FlexiZone-Multi, FlexiZone-Single)
• One-shot AF and Servo AF selectable for Stills and Movie
• Metering: Real-time evaluative metering with image sensor.
• Evaluative metering, partial metering, spot metering, center-weighted average metering.
• Display Options: Grid overlay (x3), Histogram

What's in the Box?

• Canon EOS 850D DSLR Camera with 18-135mm f3.5-5.6 IS USM Lens
• Eyecup EF-2
• Camera Cover R-F-3
• Front Lens Cap
• Rear Lens Cap
• Wide Strap
• Battery Charger LC-E17E
• Battery Pack LP-E17
• Power Cable
• User Manual Kit

MPN: 3925C022
