Product Description
Fujifilm EF-W1 Wireless Commander for EF-60 This commander unit uses radio-controlled wireless communications to remotely trigger EF-60’s diverse functions including the TTL mode, Manual mode and FP High-Speed Sync mode. It can simultaneously control multiple remote flash units, which can... read more

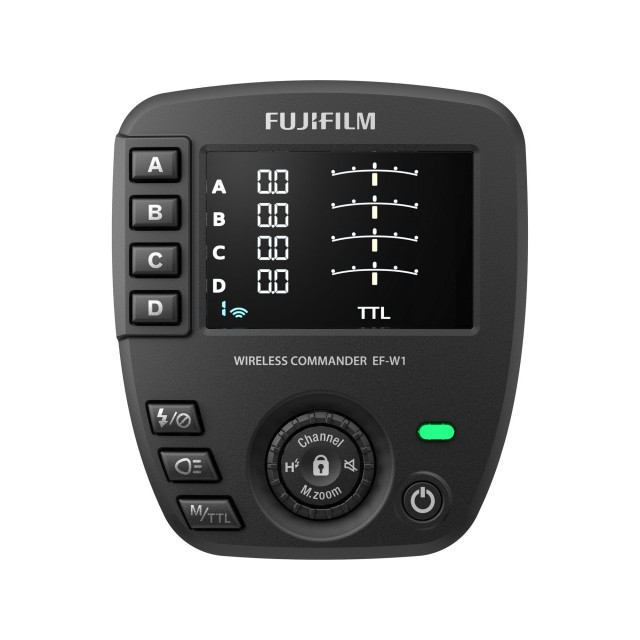

Fujifilm EF-W1 Wireless Commander for EF-60
This commander unit uses radio-controlled wireless communications to remotely trigger EF-60’s diverse functions including the TTL mode, Manual mode and FP High-Speed Sync mode. It can simultaneously control multiple remote flash units, which can be divided into four groups to accept different settings.
The commander and remote flash units communicate with radio control. This means remote flashes can be placed in positions far away or out of direct line-of-sight from the commander, and used even in bright ambient light, giving greater freedom than the conventional optical communications system in configuring a shooting set-up, thereby broadening possibilities in photographic expressions.
The EF-W1 uses NAS (Nissin Air System)*1 for radio-controlled wireless communications. This means the commander makes the X and GFX Series of camera systems compatible not only with the EF-60 but also with a variety of NAS-based speedlights offered by Nissin Japan Ltd.
MPN: 16657855
Barcode: 4547410433531
Fujifilm EF-W1 Wireless Commander for EF-60 Specification
Compatible Cameras
Other compatible device
Nissin flash with Nissin Air System(NAS)
| Wireless Communication Unit | ||
|---|---|---|
| Communication Method | NAS(Nissin Air System)*1 | |
| Frequency Range Used (center frequency) | 2409 – 2476 MHz | |
| Wireless Maximum Output | 8 dBm (EIRP) | |
| Communication Channel | 8 channels | |
| Maximum number of flashes used simultaneously | 30 | |
| Functions | ||
| Action mode | Radio Wireless Commander (TTL, Manual, OFF) | |
| TTL Flash Exposure Compensation Control | ±2EV, 1/3EV steps | |
| Manual Flash Control | 1/1 – 1/256, 1/3EV steps | |
| FP (high speed sync) Emission Control | Compatible (when using a compatible camera) | |
| The Coverage (zoom) | 24 – 200mm (35mm format conversion), auto zoom | |
| Recycling Time | Max. approx. 10 times/second | |
| Other Functions | Firemware update by microSD card, open mode*2, modeling light control*2 that allows to control one flash from multiple wireless commanders. |
|
| Power Supply and Others | ||
| No. of Flashes | Approx. 3,000 times (when using alkaline batteries)*3 | |
| Power Supply | 2 x AAA batteries (Ni-MH batteries, alkaline batteries) | |
| Using Temperature Range | -10 to 40 degrees Celsius | |
| Dimension (Height x Width x Depth) | Approx. 61mm x 62mm x 68mm | |
| Weight | Approx. 73g (without battery) | |
MPN: 16657855
Barcode: 4547410433531
Finance
Spread the cost with finance on selected products. Make that dream purchase a reality and buy the latest gear from Castle Cameras today.
There are various options available, including (subject to promotion) interest free credit. If finance options are available, they will show as 'Finance Available' directly under the price. Click on that grey button and it will show you all the finance options available on that product and the monthly instalments.
Find more details about our Finance terms here. If you need any further information, please call our team on 01202 526606 or Contact us.
Fujifilm EF-W1 Wireless Commander for EF-60
No stock on site. Please allow 20 days for delivery
Product Code: EY28094
Product Summary
- Radio-controlled wireless communication system to trigger any compatible flash.
- Up to 30 compatible flashguns can be triggered simultaneously.
- The EF-W1 makes use of the Nissin Air System, allowing the use of NAS-based flashes made by Nissin.
- The EF-W1 allows you to control output in 1/3EV increments.
