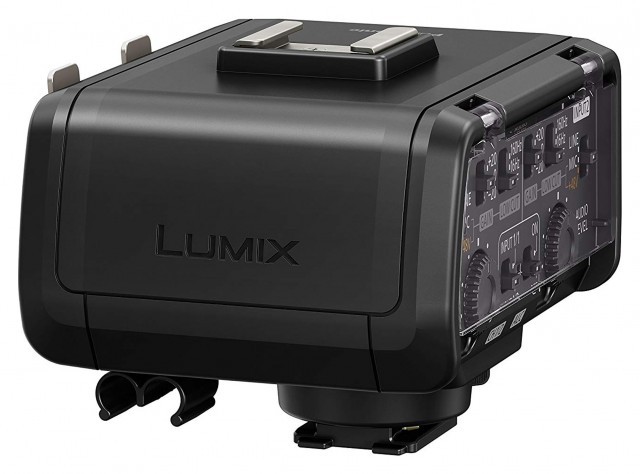

Panasonic DMW-XLR1 Microphone Adaptor for DC-GH5, S1

The Panasonic DMW-XLR1 is a hot-shoe mounted microphone adapter for the Lumix GH5, GH5s, and full frame S-Series S1, S1R and S1H. Expands the audio capabilities of the mirrorless cameras. It connects to the camera directly through the hot shoe and provides two XLR inputs for using professional microphones. It also features a control panel with a clear cover that sports numerous physical dials and controls for changing the levels, gain, and low cut filter of each input individually. Also, it supports high-resolution recording formats up to 96 kHz and 24-bit. A cable clamp is present as well for cable management and a shoe mount on the top of the unit can support additional accessories. Additionally, it receives power directly from the camera.

Features

• XLR microphone adaptor for professional video production (LUMIX GH5, GH5s, S1, S1R, S1H Compatible)
• Input: Analog, XLR Jack x 2 terminals
• Output: Digital, I2S format, Fs = 48 k or 96 kHz, Bit depth = 16 or 24 bit.
• An integrated cable clamp keeps cables out of the way.
• DC power is supplied by the camera body via a shoe connector.
• Control panel can be checked through a clear cover.
• Attaches to the camera's hot-shoe
• Provides users with two XLR inputs for using professional microphones
• Control panel with dials to change levels and sliders for gain, and low cut filter of each input
• Recording at up to 96 kHz & 24-Bit
• Piggy-back shoe mount for additional accessories
• Includes cable clamp for cable management
• Powered by the camera's battery
