Product Description
Panasonic DMW-XLR2E microphone adapter Expand the audio capabilities of your DC-GH7 mirrorless camera with this shoe-mounted DMW-XLR2 XLR Microphone Adapter from Panasonic. It is powered by the camera directly through the hot shoe and provides two XLR inputs for using professional microphones, and... read more

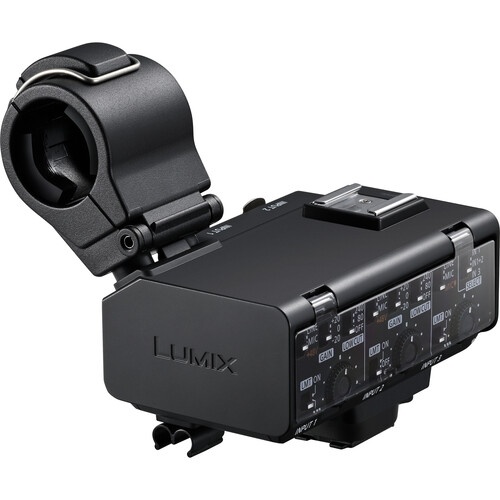

Panasonic DMW-XLR2E microphone adapter
Expand the audio capabilities of your DC-GH7 mirrorless camera with this shoe-mounted DMW-XLR2 XLR Microphone Adapter from Panasonic.
It is powered by the camera directly through the hot shoe and provides two XLR inputs for using professional microphones, and there is an additional 3.5mm stereo audio input for alternative mic options.
- Connects to DC-GH7 through Hot Shoe
- Provides Two XLR Audio Inputs
- One 3.5mm Stereo Mini Jack Input
- Control Panel with Clear Cover
- Physical Switches & Dials
- Recording at up to 96 kHz & 24-Bit
- 48V Phantom Power on XLR or 3.5mm
- Cable Clamp for Wire Management
- Additional Shoe Mount on Top of Unit
The unit features a control panel with a clear cover that sports numerous physical dials and controls for changing the levels, gain, and low cut filter of each input individually.
It also supports high-resolution recording formats up to 96 kHz and 24-bit, and it provides 48V phantom power to either the dual XLR inputs or to the 3.5mm input. A cable clamp is provided for cable management, and a cold shoe mount on the top of the unit can support additional accessories.
read lessMPN: DMW-XLR2E
Barcode: 5025232966110
Panasonic DMW-XLR2E microphone adapter Specification
- Compatibility: Panasonic Lumix DC-GH7
Inputs / Outputs
- Audio I/O: 2x XLR 3-Pin Input - 1x 1/8" / 3.5 mm Mic Input (Stereo)
Environmental
- Operating Temperature: -10 to 40°C
- Operating Humidity: 10 to 80%
Physical
- Power Source: Camera
- Mounting: Bottom: 1x Hot Shoe / Top: 1x Cold Shoe
- Colour: Black
- Dimensions, without microphone holder: 9.2 x 6.12 x 6.09 cm
- Dimensions, with microphone holder: 10.62 x 9.46 x 9.2 cm
- Weight, without microphone holder: 158 g
- Weight, with microphone holder: 192 g
What's in the Box?
- Panasonic DMW-XLR2E microphone adapter
- Microphone Holder
- Cable Holder
- Pouch
MPN: DMW-XLR2E
Barcode: 5025232966110
