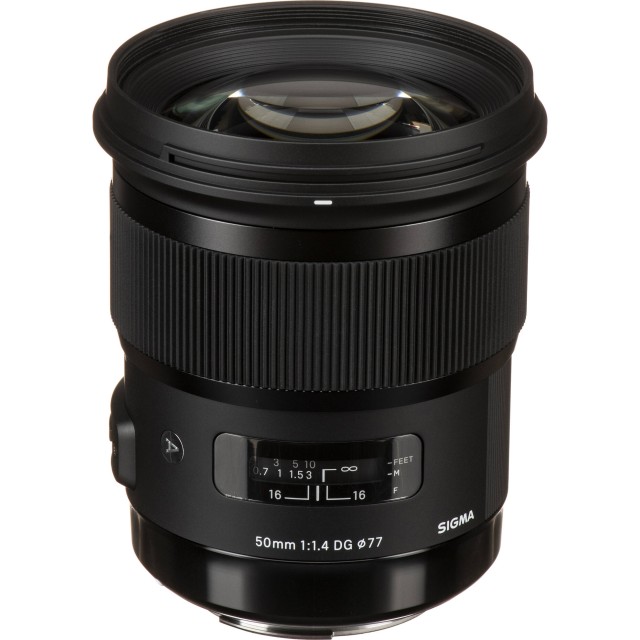

Sigma 0050mm f1.4 DG HSM ART NAF fit lens

Incredible resolution ideal for the high-megapixel era

• Full-time MF over-ride
• USB dock compatible
• Diaphragm blades: 9
• Minimum focus distance: 40 cm
• Filter size: 77mm
• Dimensions: 8.54D x 9.99L cm
• Weight: 815 g

The 50mm lens that optimizes the characteristics of digital cameras, such as compensating peripheral brightness, controlling the point images in the corners, and improving the image drawing, not only around the focusing point, but also other areas in the image.

Correction of axial chromatic aberration

For axial chromatic aberration that is hard to correct even during the image processing, SLD (Special Low Dispersion) glass elements are incorporated, ensuring high image quality throughout the entire focusing range. The lens achieves sharp and high contrast image rendering.

Minimized distortion

It is not possible to compensate for distortion just by changing the aperture values. Thus, the lens development stage was vital in ensuring minimized distortion. The 'SIGMA 50mm F1.4 DG HSM' has positioned each glass element to optimize the power layout at respective positions, and succeeded in minimizing distortion.

Rich peripheral brightness

It secures very rich brightness in the peripheral areas, which can be a common problem for a lens with a large diameter. By positioning wide elements in the front group, it has improved the efficiency at large apertures. Since it is capable of minimizing vignetting, very clear depiction across the image is ensured.

Designed to minimize flare and ghosting

Flare and ghosting were thoroughly measured and monitored from the lens development stage to establish an optical design which is resistant to strong incidental light such as backlight. The Super Multi-Layer Coating reduces flare and ghosting and provides sharp and high contrast images even in backlit conditions.

Minimum focusing distance of 40cm

The lens incorporates a floating system that adjusts the distance between lens groups while focusing, thereby reducing the amount of lens movement required. This achieves a minimum focusing distance of 40cm and maximum magnification ratio of 1:5.6. As there is less variation in aberration at different shooting distances, the lens delivers high rendering performance throughout the entire focusing range.

Hyper Sonic Motor ensures High AF Speed

The HSM (Hyper Sonic Motor) ensures a silent, high-speed AF function. Optimizing AF algorithm, smoother AF is achieved. Also, this lens can offer full-time MF function by rotating the focus ring of the lens while auto focusing. Without changing the AF/MF Focus Mode Switch, it allows faster focus adjustment.  * The default setting of Full-time MF function varies for each mount.

Design Concept

With the new product lines, supplied hoods incorporate rubber for the connected part. Lens caps and AF/MF switches are also newly designed in order to improve usability. For the parts inside, metals and a new material called TSC (Thermally Stable Composite), which works well with metals, are located to achieve products with high accuracy. The lens barrel includes the year of release, engraved for users to recognize when the lens was released.

Brass made bayonet mount

This lens incorporates a brass made bayonet mount which has both high accuracy and durability. A special treatment to reinforce its strength is applied to the surface giving it greater strength and making it highly resistant to long-term use.

'Made in Japan'

All Sigma's manufacturing – right down to moulds and parts – with a few exceptions, are carried out under a single integrated production system, entirely in Japan. We are now one of the very few manufacturers whose products are solely 'made in Japan'. We like to think our products are somehow imbued with the essence of our homeland, blessed as it is with clean air and water, and focused, hard-working.
