Product Code: DG25046
Product Description
Swarovski BTX Eyepiece The BTX combines the visual power of both eyes with a revolutionary viewing experience. Crucial subtleties can be seen with the crystal clear optics, with every detail now fully on show. A forehead rest and angled view guarantee comfortable viewing for hours on end. The benefits... read more

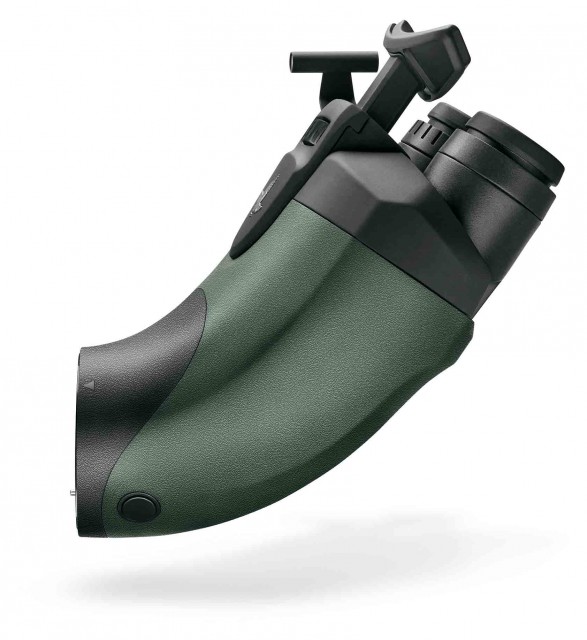

Swarovski BTX Eyepiece
The BTX combines the visual power of both eyes with a revolutionary viewing experience. Crucial subtleties can be seen with the crystal clear optics, with every detail now fully on show.
A forehead rest and angled view guarantee comfortable viewing for hours on end. The benefits of binoculars and spotting scopes are combined in the BTX eyepiece module. It presents vivid, true-to-life images and offers the comfort required for long-term observation.
The BTX eyepiece module is compatible with all objective lenses in the Swarovski Optik ATX/STX range.
Taking functionality to a new level: the ATX/STX/BTX spotting scope system combines exceptionally flexible modularity with optical perfection. The objective lens can be changed to suit any viewing situation. Extreme detail recognition at crucial moments thanks to SWAROVISION technology and total ease of use ensure fascinating experiences in the great outdoors.
Selecting a modular set up.
1. Select an eyepiece; ATX (angled spotting scope viewing), STX (straight spotting scope viewing) or BTX (Binocular viewing)
2. Select an objective lens; 65mm objective (25-60x zoom magnification), 85mm objective (25-60x zoom magnification) or 95mm objective (30-70x zoom magnification).
read lessMPN: TM-1M3L20-0
Barcode: 9006325081404
Swarovski BTX Eyepiece Specification
| Magnification | With 65 mm Scopes: 30x With 85 mm Scopes: 30x With 95 mm Scopes: 35x |
| Angle of View | With 65 mm Scopes: 2.1° (Actual) With 85 mm Scopes: 2.1° (Actual) With 96 mm Scopes: 1.8° (Actual) |
| Field of View | With 65 mm Scopes: 114' @ 1000 yd / 38 m @ 1000 m With 85 mm Scopes: 111' @ 1000 yd / 37 m @ 1000 m With 95 mm Scopes: 96' @ 1000 yd / 32 m @ 1000 m |
| Exit Pupil Diameter | With 65 mm Scopes: 2.2 mm With 85 mm Scopes: 2.9 mm With 95 mm Scopes: 2.7 mm |
| Eye Relief | 21.0 mm |
| Diopter Correction | -4.0 to +4.0 |
| Fogproof | Yes, Nitrogen Filled |
| Water Resistance | Waterproof (can be submerged up to 4m) |
| Dimensions | L: 17.4 cm |
| Weight | 1.4 kg |
MPN: TM-1M3L20-0
Barcode: 9006325081404
