Vortex Diamondback HD 16-48x65 Angled Scope Glassing out west demands an HD optic, but other systems can't get you the clarity you need to see a tail twitch in low light, or pick a tine out of dense cover. The redesigned Diamondback HD spotting scopes have all the horsepower the long-distance hunter... read more

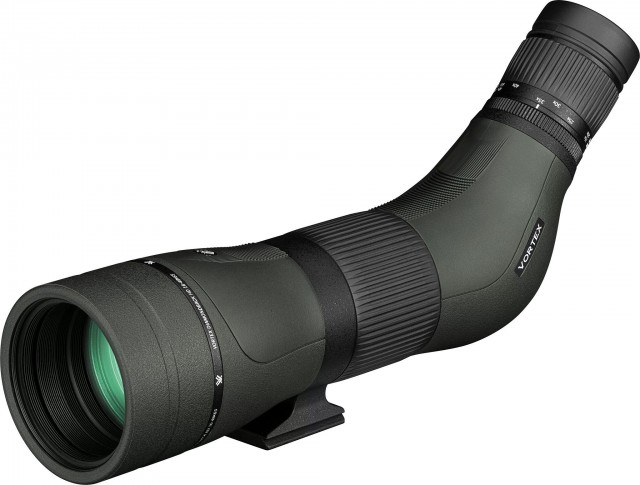

Vortex Diamondback HD 16-48x65 Angled Scope
Glassing out west demands an HD optic, but other systems can't get you the clarity you need to see a tail twitch in low light, or pick a tine out of dense cover.
The redesigned Diamondback HD spotting scopes have all the horsepower the long-distance hunter needs, and they excel in low light - right when you need it most.
Vortex have also streamlined the exterior for a sleeker, snag-free profile, building in a helical focus wheel.
Optical Features
- HD Optical System Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration and provide outstanding colour fidelity, edge-to-edge sharpness and light transmission.
- Fully Multi-Coated Increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
Construction Features
- ArmorTek ® Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
- Waterproof O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.
- Shockproof Rugged construction withstands recoil and impact.
- Fogproof Argon gas purging prevents internal fogging over a wide range of temperatures.
- Rubber Armor Provides a secure, non-slip grip, and durable external protection.
Convenience Features
- Adjustable Eyecups Twist up and down for comfortable viewing with or without eyeglasses.
- Helical Focus Allows for fast and fine adjustments.
- Arca-Swiss Compatible Directly mounts to Arca-Swiss tripod heads without the use of additional plates. Also accepts 1/4-20 threads for use on alternate style tripod heads.
- Tripod Adaptable Allowing use on a tripod or car window mount. Tripod adapter required.
- Rotating Tripod Ring Allows rotation of the eyepiece to a sideways position, providing adjustable viewing angles.
- Built-in Sunshade Reduces glare and shields the objective lens from raindrops and snow.
Vortex Lifetime Warranty
If you ever have a problem, no matter the cause Vortex promise to take care of you. Learn More
read lessMPN: DS-65A
Barcode: 843829112925
Vortex Diamondback HD 16-48x65 Angled Scope Specification
- Included in the Box: Neoprene cover / Tethered objective lens cap / Tethered ocular lens cap / Lens cloth
- Magnification: 16-48xObjective
- Lens Diameter: 65 mm
- Linear Field of View: 138-72 ft/1000 yds
- Angular Field of View: 2.6-1.4 degrees
- Close Focus: 16.4 feet
- Eye Relief: 20.3-18.3 mm
- Exit Pupil: 4.0-1.35 mm
- Dimensions: 36.195 cm Long
- Weight: 14112 g
What's in the Box?
- Vortex Diamondback HD 16-48x65 Angled Scope
- Neoprene cover
- Tethered objective lens cap
- Tethered ocular lens cap
- Lens cloth
MPN: DS-65A
Barcode: 843829112925
