Product Description

Zhiyun Crane M2S Gimbal Combo The CRANE-M2 S offers 360° pan, 320° tilt, and 320° roll rotation across six modes of operation, including POV and Vortex modes. It runs for approximately 10.5 hours on a built-in battery that's rechargeable using an included cable. Over a wired connection,... read more

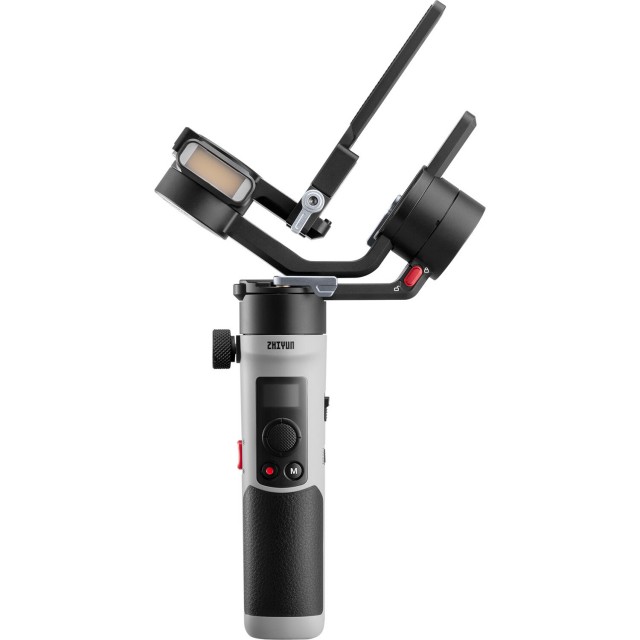

Zhiyun Crane M2S Gimbal Combo

The CRANE-M2 S offers 360° pan, 320° tilt, and 320° roll rotation across six modes of operation, including POV and Vortex modes.

It runs for approximately 10.5 hours on a built-in battery that's rechargeable using an included cable. Over a wired connection, the gimbal can power a supported camera and control its zoom, shutter, and video start/stop functions. You can also control the gimbal movements with the free-download ZY Play mobile app for iOS and Android, providing remote control over many functions of the gimbal and filmmaking features such as time-lapse, panorama, and slow-motion capture.

  • Updated Ultra-Portable Design, New Color
  • For Cameras & Smartphones up to 2.2 lb
  • 360° Pan, 320° Tilt & 320° Roll Rotation
  • Six Operation Modes, Built-In Fill Light
  • Carry Bag & Phone Clamp in Combo Kit
  • Supports Action Cams via Optional Mount
  • Wired Camera Control, 10.5-Hour Runtime
  • Bluetooth/Wi-Fi, ZY Play iOS/Android App
  • OLED Display, Redesigned Mounting Plate

The CRANE-M2 S features a quick release camera mounting system that lets you secure or remove your camera at the push of one lock button. Scale marks and memory locks help you balance the camera and lock the balance position for the camera used. The built-in fill light is integrated beside the camera plate, it features a CRI of 90+, 1000-lumen brightness, and five brightness levels, and it includes four interchangeable filters to change the color temperature.

Six Modes of Operation

PF Mode: The camera pans as you turn the gimbal left and right. This feature is useful for hyperlapse capture and traveler footage.

F Mode: The camera will follow the gimbal handle's movements.

L Mode: The camera direction is locked, so you won't miss a shot in any situation.

POV Mode: The CRANE-M2 S offers full-range POV mode, which allows for 360° synchronous movement on all three axes. Instead of leveling off during motion, the camera will remain locked in position no matter which way or how far you move the gimbal, allowing for true POV shots.

Vortex Mode: Vortex mode gives you the freedom to perform cinematic 360° barrel shots in all dimensions.

Go Mode: Performs fast pan and tilt motions for dramatic action shots.

read less

MPN: C02123GCB

Barcode: 6970194086798

Zhiyun Crane M2S Gimbal Combo Specification

Gimbal

  • Load Capacity: 998 g
  • Number of Axes 3: Pitch (Tilt), Roll, Yaw (Pan)
  • Rotation Range Mechanical: Yaw (Pan): 360° / Pitch (Tilt): 320°  / Roll: 320°
  • Rotation Range Controllable: Yaw (Pan): 360°  / Pitch (Tilt): 220° (-60 to 160°)  / Roll: 60° (-30 to 30°)

Connectivity

  • Inputs/Outputs: 1x USB-C (Power) Input / 1x USB-C (Power / Control) Output
  • Wireless Frequency: 2.4 GHz
  • Wireless Protocol: Bluetooth 5.0, Wi-Fi (Unspecified Type)
  • Mobile App Compatible: Yes: Android & iOS / App Name: XY Play / Functionality: Remote Control

Battery

  • Battery Type: 1x Built-In
  • Battery Capacity: 1150 mAh
  • Battery Runtime: 10.5 Hours
  • Battery Charging Time: 1.5 Hours
  • Battery Chemistry: Lithium-Ion

Power

  • Operating Voltage: 9.6 to 12.6 VDC
  • Operating Current: 135 to 4000 mA

Environmental

  • Operating Temperature: -10 to 45°C

General

  • Display Type: Articulating Non-Touchscreen OLED
  • Dimensions: 24 x 15 x 6.8 cm
  • Weight: 549 g

MPN: C02123GCB

Barcode: 6970194086798

Finance

Spread the cost with finance on selected products. Make that dream purchase a reality and buy the latest gear from Castle Cameras today.

There are various options available, including (subject to promotion) interest free credit.  If finance options are available, they will show as 'Finance Available' directly under the price.  Click on that grey button and it will show you all the finance options available on that product and the monthly instalments.

Find more details about our Finance terms here.  If you need any further information, please call our team on 01202 526606 or Contact us.

Zhiyun Crane M2S Gimbal Combo

£259.00

in stock Limited Stock

Ask a question

Product Code: GX30667

One Year UK Warranty

Product Summary

  • Ergonomic - Lightweight and compact design delivers great handling .
  • Lighting - Fill Light with 5-level Adjustment and 4 colour filters.
  • Small but invaluable - built-in 0.66-inch display screen keeps you informed of the positioning of your camera and gimbal.
  • New Quick Release System - V-shape design & dual safety lock for complete security.
  • Fast charging - Supports fast 12W PD charging 10 hours runtime and a minimum charging time of 1hr 41min.
