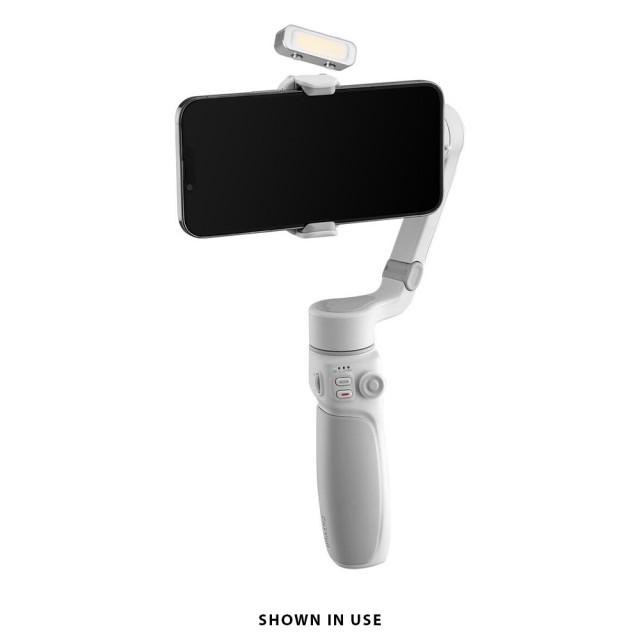

Zhiyun Zhiyun Smooth Q4 Combo Gimbal Stabiliser for Smartphone
Enlarge

Product Description

Zhiyun Smooth Q4 Combo Gimbal Stabiliser for Smartphone The Smooth-Q4 Smartphone Gimbal Stabilizer from Zhiyun-Tech has the same improved design as the Smooth-Q4 and includes a magnetic fill light with a luminance of up to 520 lumens. The gimbal offers many of the same gimbal modes and recording functions... read more

Zhiyun Smooth Q4 Combo Gimbal Stabiliser for Smartphone

The Smooth-Q4 Smartphone Gimbal Stabilizer from Zhiyun-Tech has the same improved design as the Smooth-Q4 and includes a magnetic fill light with a luminance of up to 520 lumens. The gimbal offers many of the same gimbal modes and recording functions as its predecessor, with the added benefit of a built-in extension rod for content creators who are on the move. The Smooth-Q4 can support smartphones up to 9.9 oz and 3.5" wide. Its companion Android/iOS smartphone app features a slew of templates, editing tools, and control functions to fulfill your creative vision. Switching between landscape and portrait modes is as easy as pressing a button, so you can transition from filming panoramic scenery to filming a TikTok. The built-in battery supply powers the device for up to 15 hours and a single USB-C input can recharge it in 2.5 hours or serve as a firmware update port.

Expandable Form Factor for Intuitive Shooting

Operate the Smooth-Q4 with just one hand, thanks to the improved onboard controls and comfortable handgrip. Joysticks, buttons, and wheels control functions like gimbal mode and video recording. Various indicator lights on the gimbal display the current mode or power level. Extend the gimbal's reach with the built-in 8.5" extension rod. A mini tripod can be attached to the bottom of the Smooth-Q4 for stabilized, hands-free setups.

Magnetic Fill Light

The included magnetic fill light comes with four different colored filters and has a luminance level of up to 520 lumens and a color temperature of 5500K. Adjust the brightness up to four levels using the multi-functional control wheel.

Onboard Controls and Indicators

Press the multi-functional control wheel to adjust the brightness of the fill light. Slide to adjust your phone's focal length.

Other onboard controls include a power button, photo/video button, MODE button, trigger button, and joystick.

Gimbal mode indicators allow you to see which mode you are currently using. Available modes include Lock, Follow, Pan Follow, Point of View, and Vortex.

ZY CAMI Smartphone App

The app supports Android 7.0 and iOS 10.0 operating systems and above.

SmartShooting helps identify your current shooting scenario and offers suggested shooting modes like MagicPano and Livestream Master, which are exclusive to the app.

Tap on the companion app interface to toggle SmartFollow 3.0 and ensure your subject remains centered.

Smart editing templates, background music, special effects, and other tools can enhance your video. Split-screen comparisons and BTS camera movement can show you how to best move the camera to mimic the template format.

Gesture Control, Native Orientation Switch

The gimbal can start shooting photos or videos by directing simple hand gestures toward the camera.

Both onboard controls and gesture controls can switch your filming orientation from landscape to portrait for different social media platforms.

read less

MPN: C030116CB

Barcode: 6970194087061

Zhiyun Smooth Q4 Combo Gimbal Stabiliser for Smartphone Specification

Grip Design: Single Handgrip

Gimbal

  • Load Capacity: 280 g
  • Number of Axes: 3-Axis (Pitch (Tilt), Roll, Yaw (Pan))
  • Rotation Range: Mechanical Range
  • Yaw (Pan): 331° (-96 to 235°)
  • Pitch (Tilt): 338° (-84 to 254°)
  • Roll: 338° (-175 to 163°)
  • Stabilization Accuracy: ±0.05 to 0.3° (Motion)
  • ±0.01 to 0.04° (Motionless)

Compatibility

  • Camera Control: On Compatible Models (See Full Compatibility List)
  • Smartphone Dimensions: Thickness: 0.3 to 0.4" / 7 to 10 mm
  • Width: 2.2 to 3.5" / 55 to 90 mm

Connectivity

  • Inputs/Outputs: 1 x USB-C (Power / Control) Input
  • Wireless Frequency: 2.4 GHz
  • Wireless Protocol: Bluetooth 4.2
  • Mobile App Compatible: Yes: Android & iOS
  • App Name: ZY Cami
  • Functionality: Firmware Update, Remote Control

Battery

  • Battery Type: 1 x Built-In
  • Battery Capacity: 1200 mAh
  • Battery Runtime: 15 Hours
  • Battery Charging Time: 2.5 Hours

Power

  • Operating Voltage: 6.5 to 8.8 VDC
  • Operating Current: 100 to 3300 mA

Environmental

  • Operating Temperature: 22 to 77°F / -10 to 45°C

General

  • Mounting: 1 x 1/4"-20 Female
  • Dimensions: 181.7 x 107.7 x 56.3 mm (Folded)
  • Weight: 370 g

MPN: C030116CB

Barcode: 6970194087061

Finance

Spread the cost with finance on selected products. Make that dream purchase a reality and buy the latest gear from Castle Cameras today.

There are various options available, including (subject to promotion) interest free credit.  If finance options are available, they will show as 'Finance Available' directly under the price.  Click on that grey button and it will show you all the finance options available on that product and the monthly instalments.

Find more details about our Finance terms here.  If you need any further information, please call our team on 01202 526606 or Contact us.

Zhiyun Smooth Q4 Combo Gimbal Stabiliser for Smartphone

£119.90

in stock In Stock

Ask a question

Product Code: GJ30016

One Year UK Warranty

Product Summary

  • Ergonomic - New foldable design making it more compact.
  • Extendable - The Smooth Q4 features a 215mm extendable rod for taking those unique shots.
  • Lighting - Light up your shots with the double side magnetic fill light attachment.
  • Easy operation - Multi functional control wheel for easy fluid control, make it easy to access and change various settings on the go.
  • Innovative quick-release - A new module that integrates the horizontal and vertical lock structure, enabling effortless switching between native landscape and portrait shooting modes.
