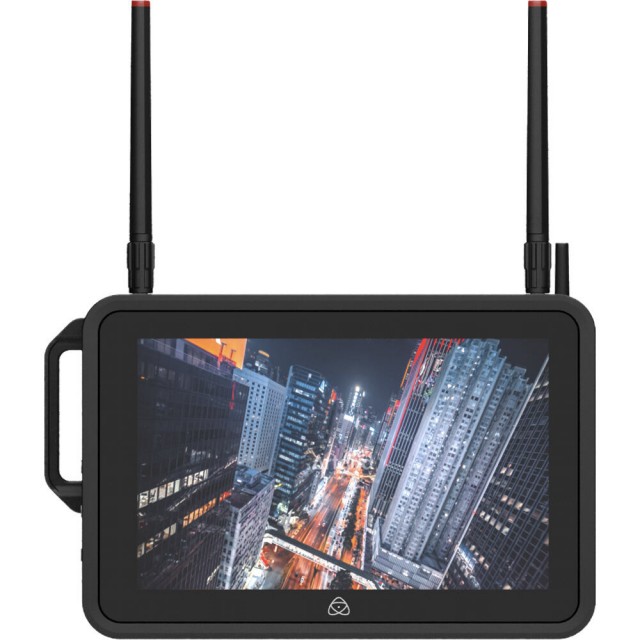

Atomos Shogun Connect

Shogun CONNECT combines portable monitoring and professional RAW recording, with support for integrated and cloud-based workflows.

Shogun CONNECT builds on the pedigree of the ground-breaking Shogun product line. Every detail has been redesigned from the ground up to make Shogun CONNECT the most powerful and versatile device ATOMOS has ever created.

Featuring a much brighter 7-inch 2000nit screen and multiple recording options, Shogun CONNECT provides a premium experience for HDR monitoring and RAW recording. In addition, it includes a loop through 12G SDI IN and OUT interface, which can support SDI RAW, and is able to send a video signal to multiple devices.

As you would expect from an ATOMOS device, Shogun CONNECT combines high-quality monitoring and many different industry-standard recording formats. It also transforms digital cinema, mirrorless, and DSLR cameras into fully integrated devices that support a range of advanced cloud-based workflows.

BRILLIANT, DAYLIGHT-VIEWABLE SCREEN

The new 7-inch, daylight-viewable SuperAtom IPS touchscreen is more responsive and is perfect for outdoor use, even in direct sunlight, although it can be adjusted for darker environments to avoid glare.

COMPACT. SECURE.

From individuals to large-scale cinema productions, Shogun CONNECT has been built to fit into any camera rig. It features a versatile mount that can be adapted to suit different industry-standard equipment from a wide range of manufacturers. Once locked in place the mount is highly secure and offers anti-rotation settings, so you can trust Shogun CONNECT to remain in place at all times.

A COMPLETE MONITORING TOOLBOX

Shogun CONNECT offers a comprehensive range of monitoring tools including a waveform, focus peaking, false colour, and frame guides to help you get the composition and exposure exactly right. The AtomOS software is so easy to use and the control it provides over your images, you’ll never want to resort to relying on your camera screen or EVF again.

• Waveform
• RGB Parade
• Vector Scope
• Tap to Zoom
• Focus Peaking
• False colour with IRE scale
• Zebras
• Isolate Colour Channel
• Cine and Social Frame Guides
• Safe Areas SMPTE Frame
• Grid Markers
• Anamorphic De-squeeze
• Display Flip Vertical
• Frame Grab
• Onion Skin Overlay

POWERED FOR THE FUTURE

Shogun CONNECT is built around the latest ATOMOS silicon, the AtomIC3. The processor provides all the performance to handle the demands of the very latest cameras. It can manage higher frame rates and increased resolutions. Currently the device supports the RAW output of various cameras up to 4K at 120fps and 12-bit 8K ProRes RAW up to 30fps via HDMI or SDI.

WIRELESS REMOTE CONTROL

The AtomRemote app for iOS and macOS offers an array of external controls for Shogun CONNECT*. The app enables you to perform a range of configuration tasks and operations up to 15 meters away from the device via Bluetooth LE. Input options include the ability to define camera connections, select Gamma/EOTF, and adjust Gamut settings. For monitoring, AtomRemote can be used to control playback, choose monitoring modes, apply custom 3D LUTs, or view image analysis tools including exposure and focus. Output controls include options for 4K to HD, LUT preview, and HDR output.

* Scheduled for release Q4/2022

WIRELESS TIMECODE

ATOMOS AirGlu™ adds wireless timecode, sync, and control technology to Shogun CONNECT. AirGlu locks multiple ATOMOS devices or compatible cameras, audio recorders, and software applications together so that they share the same frame-accurate timecode. It is also able to relay recording, battery status, and disk capacity information to the server unit. Any AirGlu device can act as the server unit, which means you’ll no longer need a huge budget or get involved in time consuming post-production workflows to produce perfectly synchronized, multi-camera video.

SUPPORTED RESOLUTIONS & FRAME RATES

To save space and support longer recordings, many cameras record compressed 4:2:0 8-bit video internally. If the camera is able to output video via HDMI, the quality can often be preserved in a 4:2:2 8-bit or 10-bit format. Shogun CONNECT can record more color information and immediately add value to your production with your existing camera rig. Additionally, if you’re shooting Log footage, the ability to bypass internal compression will offer the best possible dynamic range. Shogun CONNECT is designed to maximize the quality of your videos and allow you to extend every aspect of your creative vision. Shogun CONNECT also includes 12G-SDI input, the standard on high-end cinema cameras, including the Sony FX series, Panasonic EVA1, and Canon EOS C series. The robustness and utility of SDI is critical for the productions that rely on it. SDI-RAW provides the ultimate experience in terms of flexibility and quality, which makes Shogun CONNECT the ideal choice for big budget filmmakers around the world.
